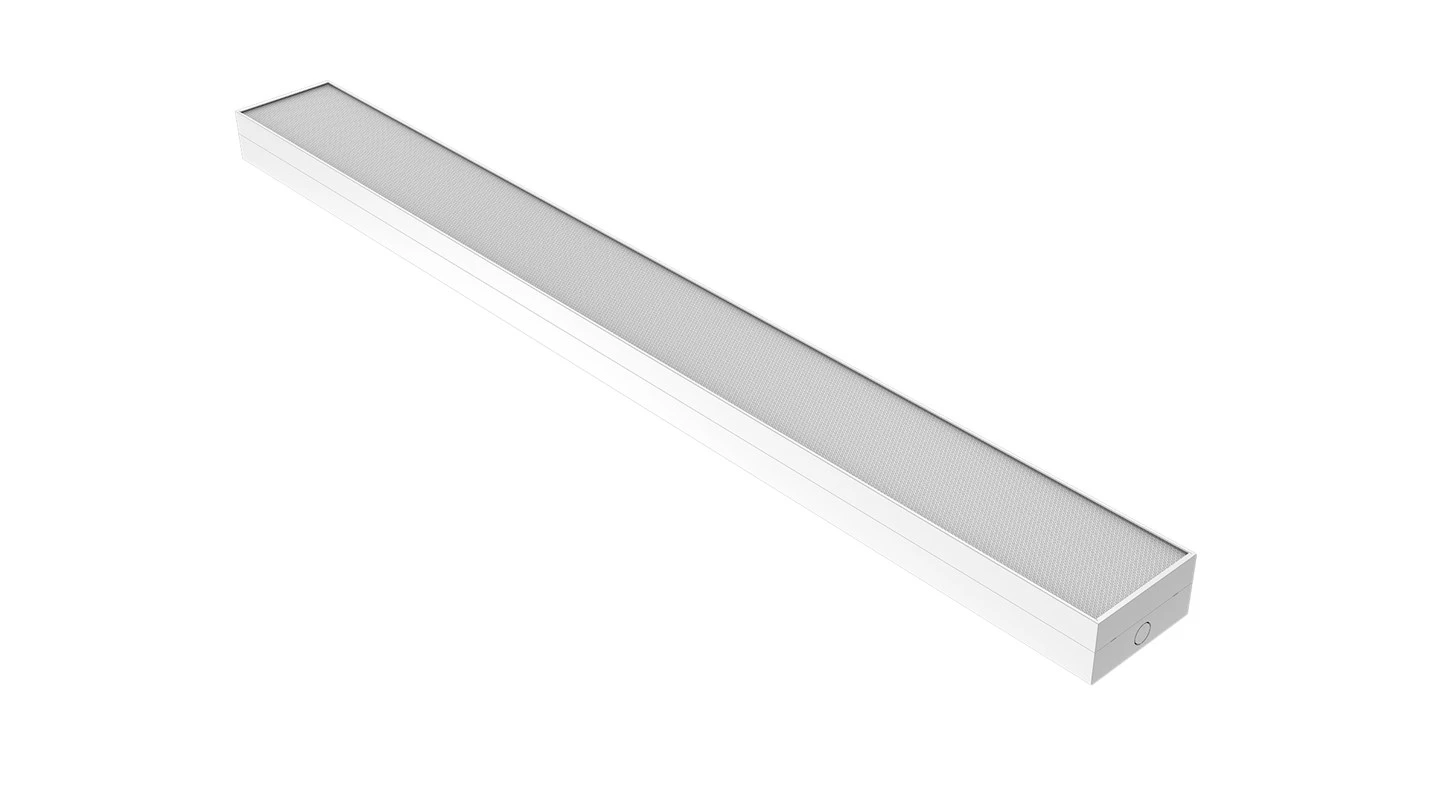

Kingston UGR Batten Limyè

Kingston UGR Batten Light

Kingston batten -2

Kingston batten -3

Kingston batten -4

Kingston batten -5

Deskripsyon:

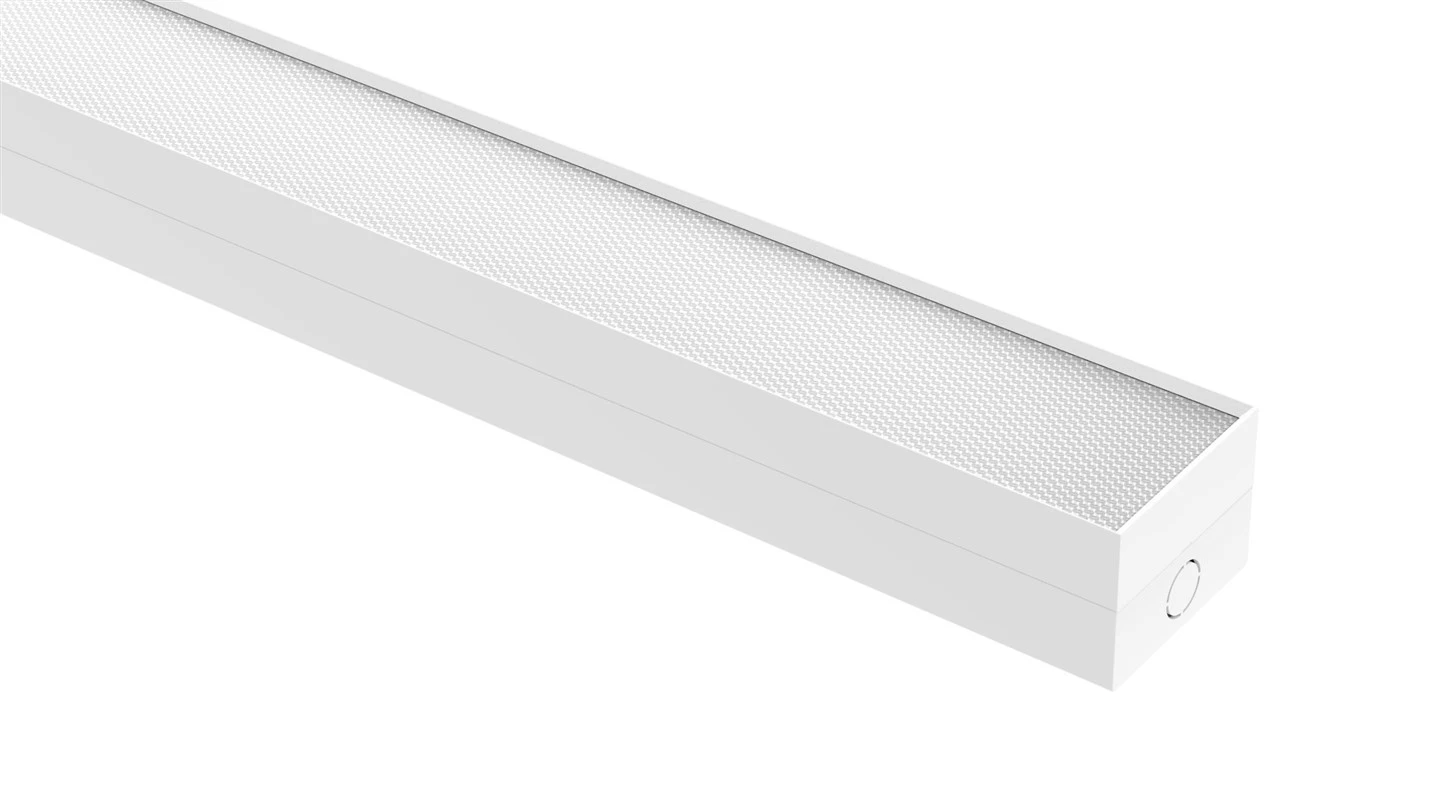

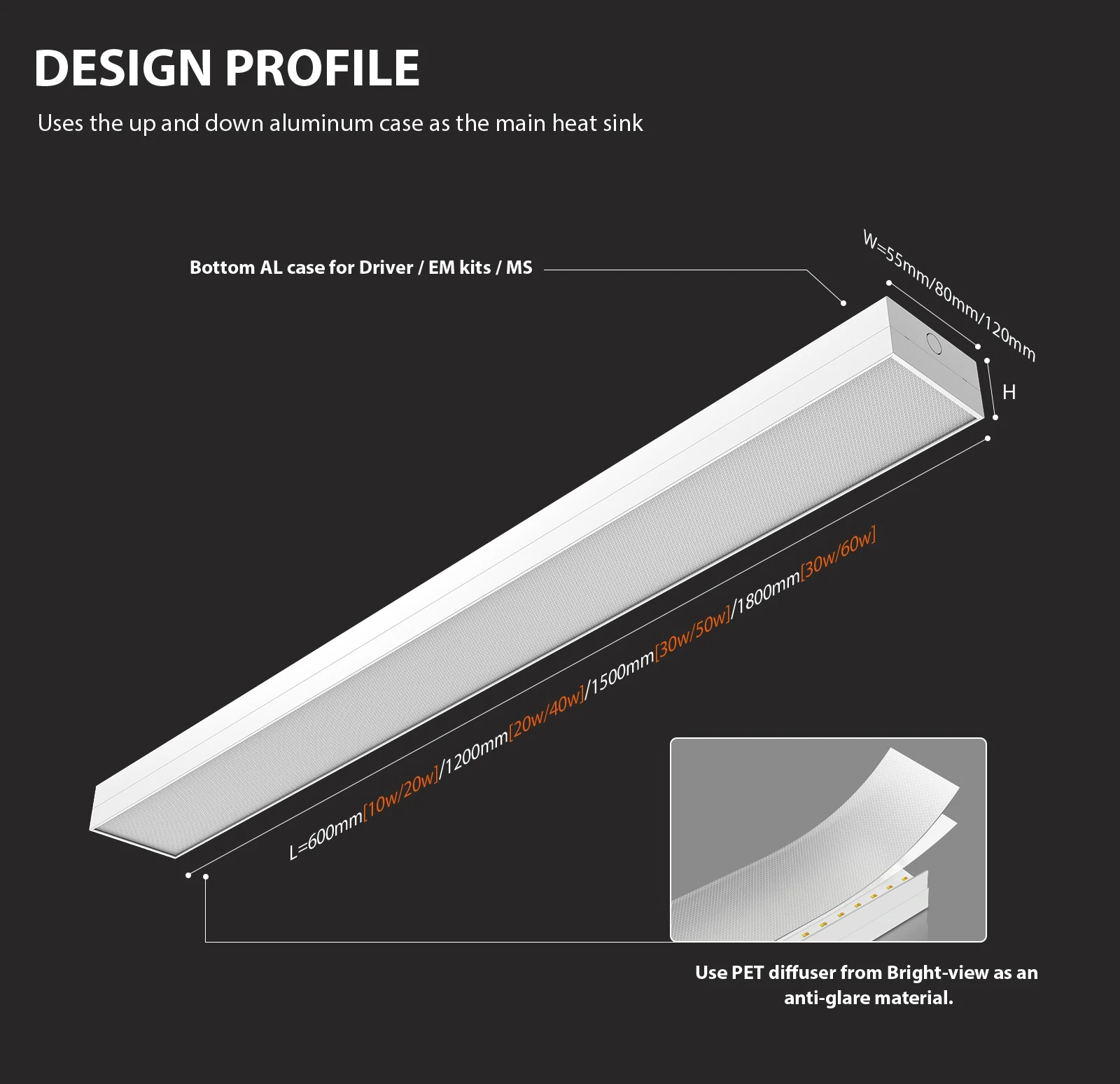

Kingston Batten sèvi ak ka a aliminyòm leve, li desann kòm koule nan chalè prensipal, ki pa sèlman asire dissipation nan chofaj bon, men tou, bay yon garanti tan long.
Kingston Batten sèvi ak difize PET ki soti nan Bright-view kòm yon materyèl anti-ekla, ki pa sèlman garanti UGR la.<19, but also guarantees the beam angle of these range of batten series. The wattage and CCT switch on the driver as a standard for the kingston battens. It helps customers reduce inventory while also enabling fast delivery.

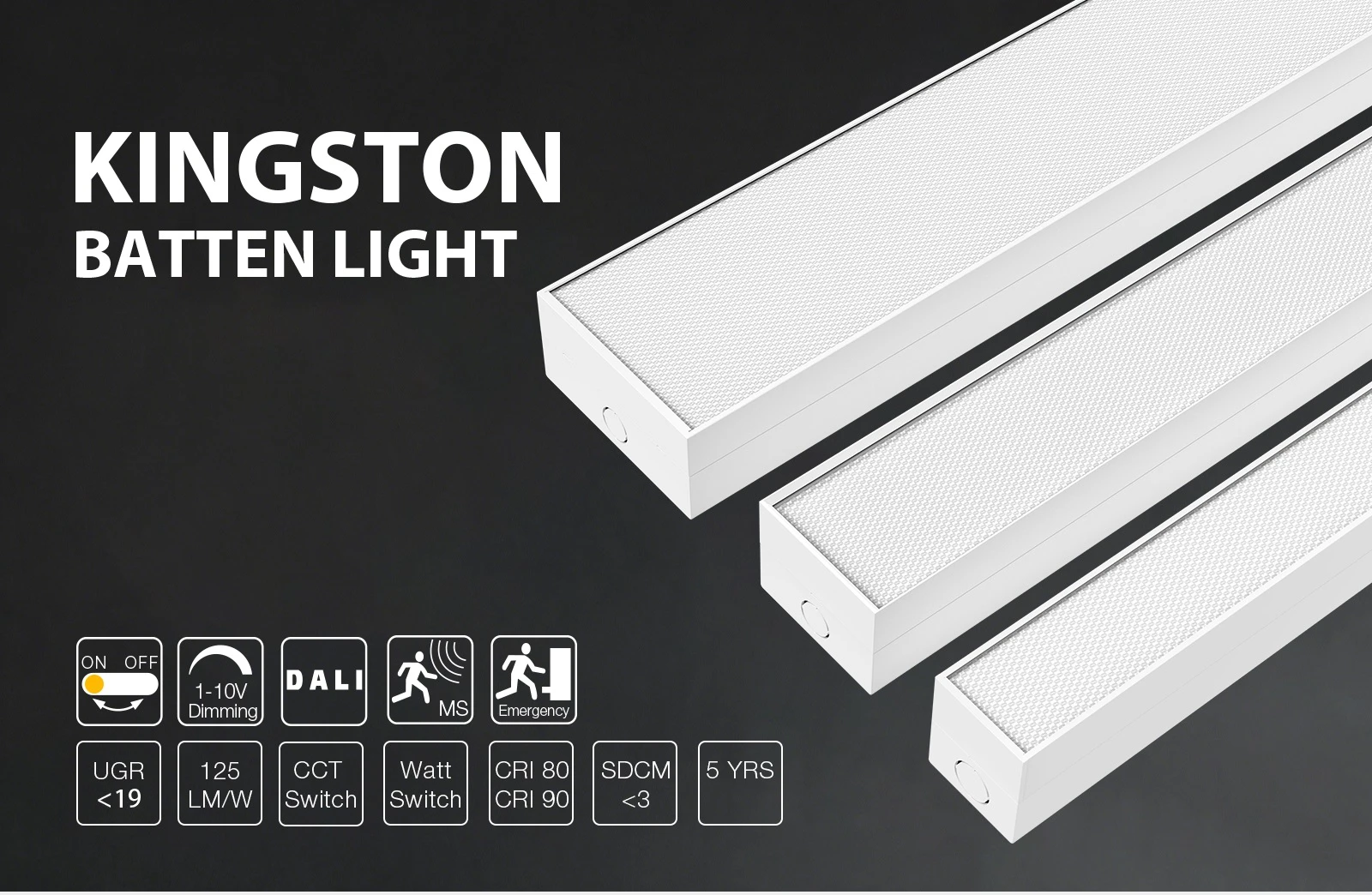

Karakteristik:

>UGR<19 with brightview film

>CCT switch sou chofè ki ap dirije

>55mm|80mm|120mm lajè ki disponib

>Ra80 oswa Ra90, SDCM<3

>Fen oswa dèyè twou besa pou antre kab

>Divès fonksyon diferan kòm opsyon

>2ft / 4ft / 5ft / 6ft dimansyon disponib

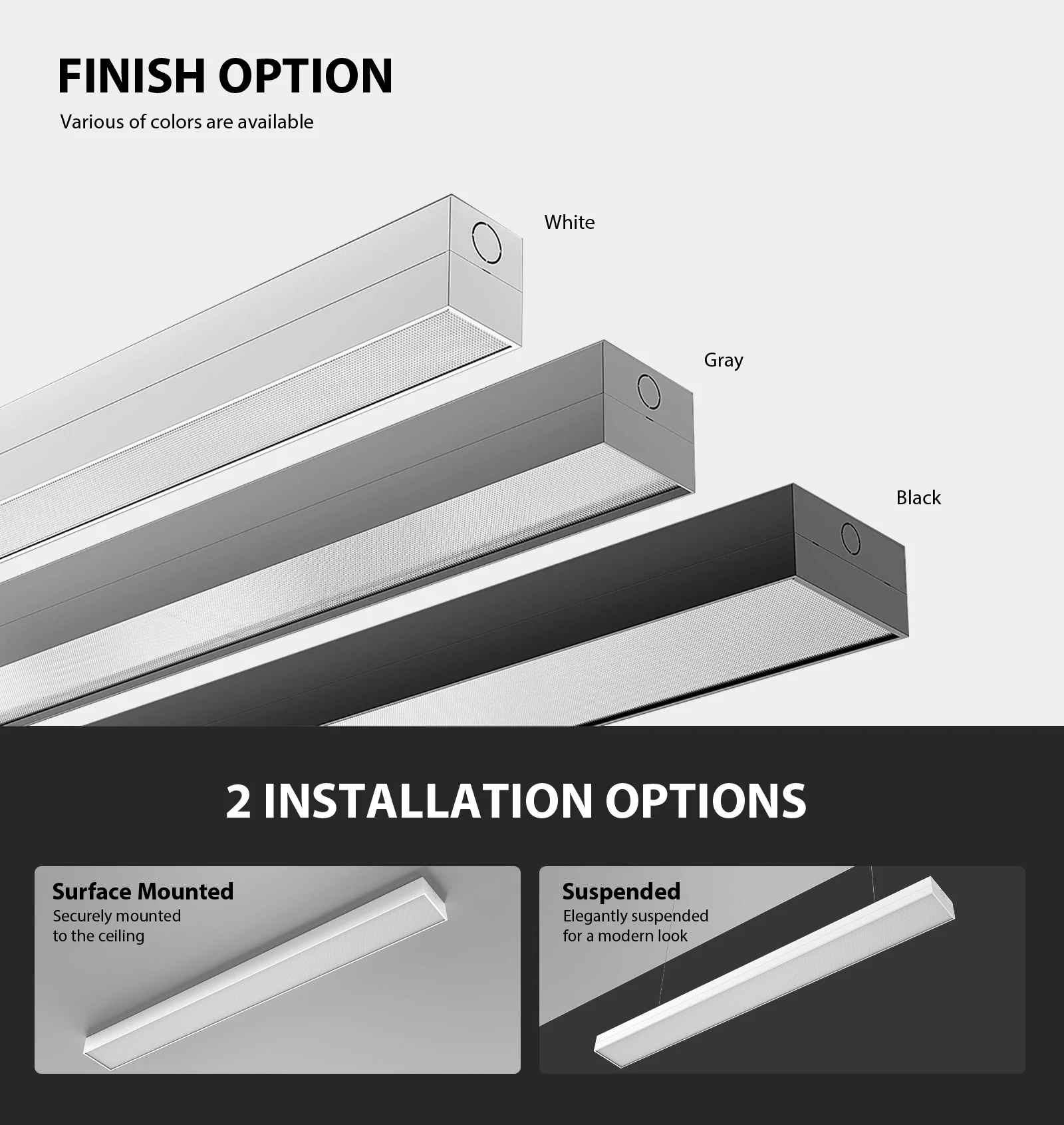

>Ankastre / Sifas aliye / Enstalasyon sispansyon

>5 ane garanti

Send Inquiry

Download

Description

Technical Parameters

ENTWODIKSYON:

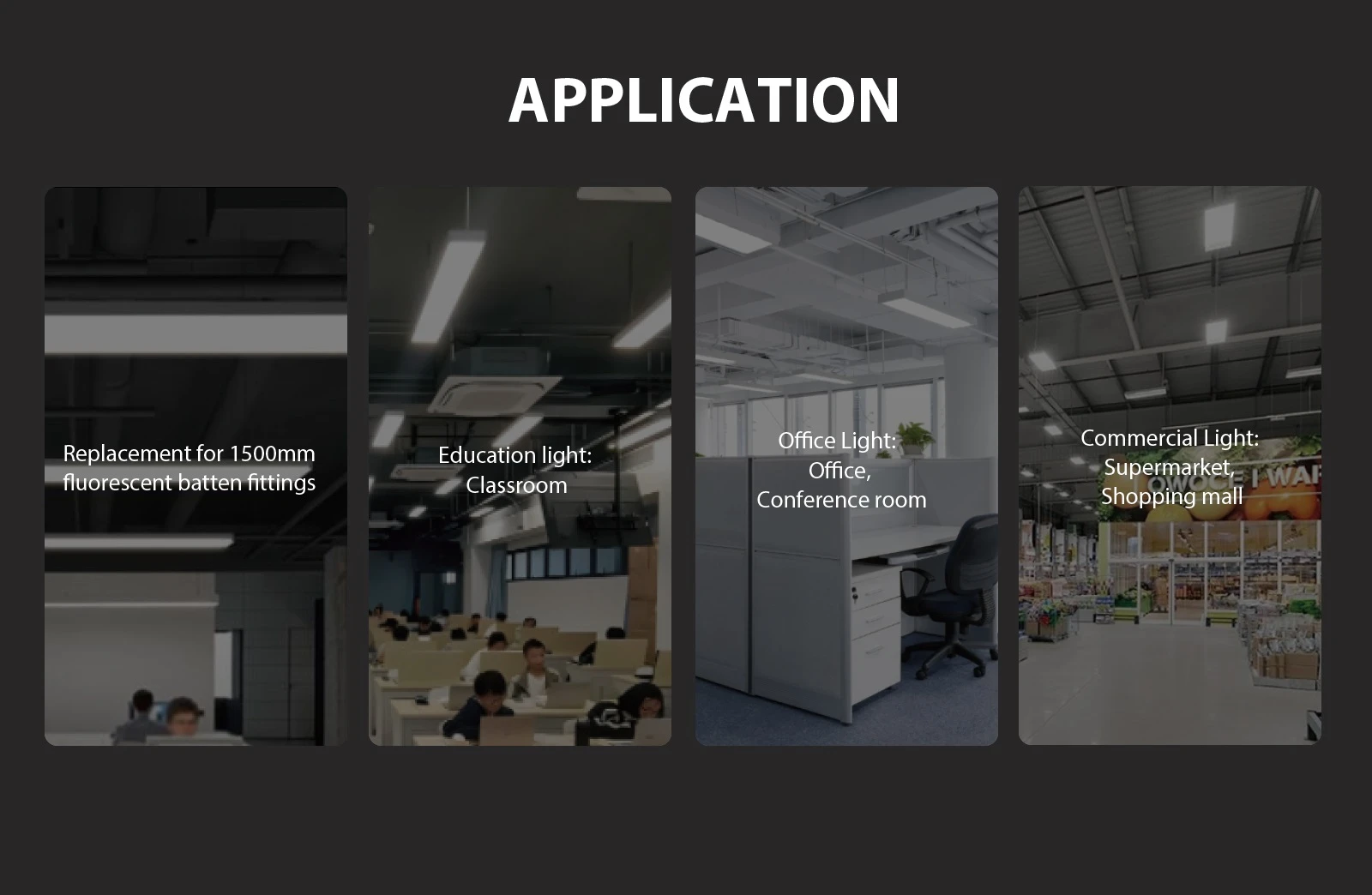

Kinston Batten ofri 55mm, 80mm ak 120mm lajè yo chwazi nan, ki fè kliyan plis enterese nan diferan aplikasyon komèsyal ak biwo.

PWOPRIYETE:

Kingston UGR Batten 55mm fèt pou bay pèfòmans ekleraj siperyè pandan y ap asire maksimòm konfò vizyèl. Efikas ak elegant, limyè sa a 2ft 4ft 5ft dirije teren pafè pou yon pakèt aplikasyon pou soti nan biwo antrepriz nan anviwònman an detay ak anviwònman endistriyèl. Lojman aliminyòm lan se yon gwo koule chalè ak gwo -teknoloji SMD2835 la bay ogmante pwodiksyon lumèn.

Kòd Lòd	Lajè	Rated pouvwa	LM/W	Lumen	SDCM/Ra	Watt/CCT Chanje	Dimansyon pwodwi	GW/CTN	QTY/CTN
BT100-02W-DT1-20F01	55mm	10/20W	tip.130	tip.1300/2600	<3/ Ra80/90	Y	L600xW55xH64	6.0kg	8pcs
BT100-04W-DT1-40F01	55mm	20/40W	tip.130	tip.2600/5200	<3/ Ra80/90	Y	L1200xW55xH64	11.5kg	8pcs
BT100-05W-DT1-50F01	55mm	30/50W	tip.130	tip.3900/6500	<3/ Ra80/90	Y	L1500xW55xH64	14.5kg	8pcs
BT100-06W-DT1-60F01	55mm	30/60W	tip.130	tip.3900/7800	<3/ Ra80/90	Y	L1800xW55xH64	17kg	8pcs
BT110-02W-DT1-20F01	80mm	10/20W	tip.130	tip.1300/2600	<3/ Ra80/90	Y	L600xW80xH64	7.0kg	6pcs
BT110-04W-DT1-40F01	80mm	20/40W	tip.130	tip.2600/5200	<3/ Ra80/90	Y	L1200xW80xH64	12.0kg	6pcs
BT110-05W-DT1-50F01	80mm	30/50W	tip.130	tip.3900/6500	<3/ Ra80/90	Y	L1500xW80xH64	14.0kg	6pcs
BT110-06W-DT1-60F01	80mm	30/60W	tip.130	tip.3900/7800	<3/ Ra80/90	Y	L1800xW80xH64	18.0kg	6pcs
BT120-02W-DT1-20F01	120mm	10/20W	tip.130	tip.1300/2600	<3/ Ra80/90	Y	L600xW120xH64	7.0kg	4pcs
BT120-04W-DT1-40F01	120mm	20/40W	tip.130	tip.2600/5200	<3/ Ra80/90	Y	L1200xW120xH64	10.5kg	4pcs
BT120-05W-DT1-50F01	120mm	30/50W	tip.130	tip.3900/6500	<3/ Ra80/90	Y	L1500xW120xH64	13.0kg	4pcs
BT120-06W-DT1-60F01	120mm	30/60W	tip.130	tip.3900/7800	<3/ Ra80/90	Y	L1800xW120xH64	15.5kg	4pcs

Kingston 01

Kingston 02

Kingston 03

Kingston 04
