ENTWODIKSYON:

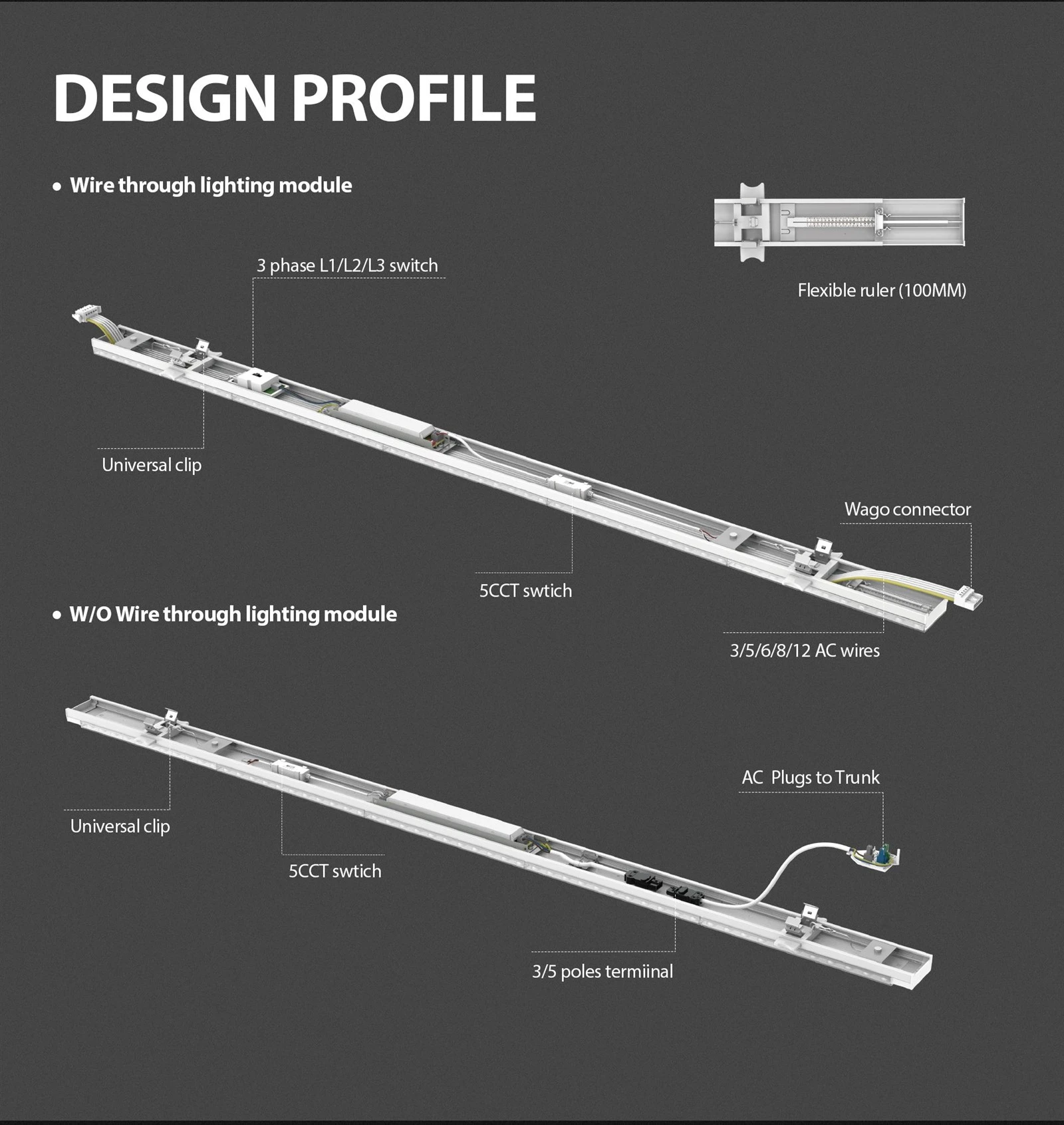

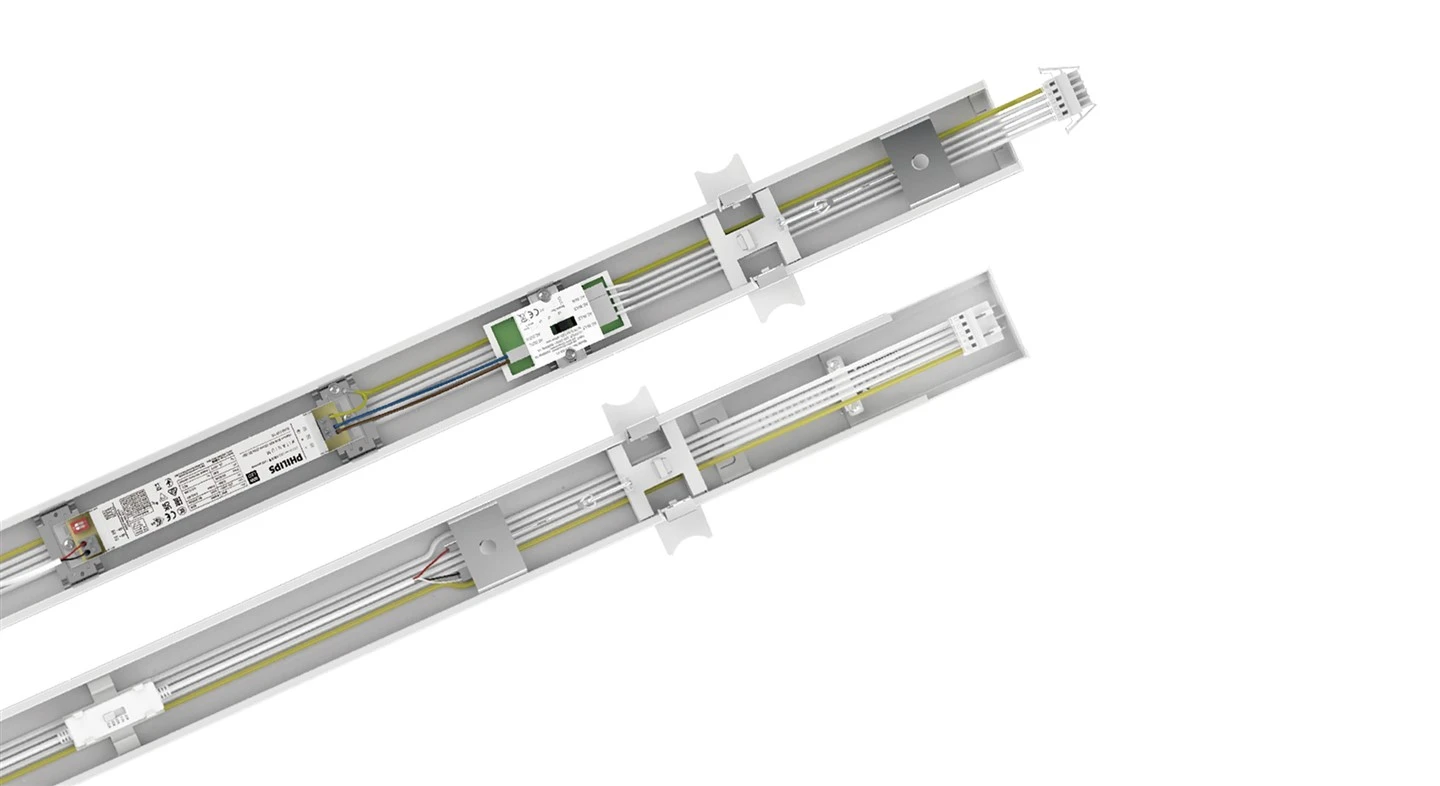

Retro Flex vini ak yon seri fil koneksyon pre-, ki fè li konplètman endepandan de kolòn vètebral la nan enstalasyon an. Tèminal koneksyon WAGO a bay yon fason rapid ak fasil pou konekte modil apre modil. Tou de vèsyon on/off 5-fil ak vèsyon an gradyasyon 7-fil prezante yon switch liy 3-faz rated nan 400V yo kreye yon varyete de senaryo enstalasyon.
PWOPRIYETE:

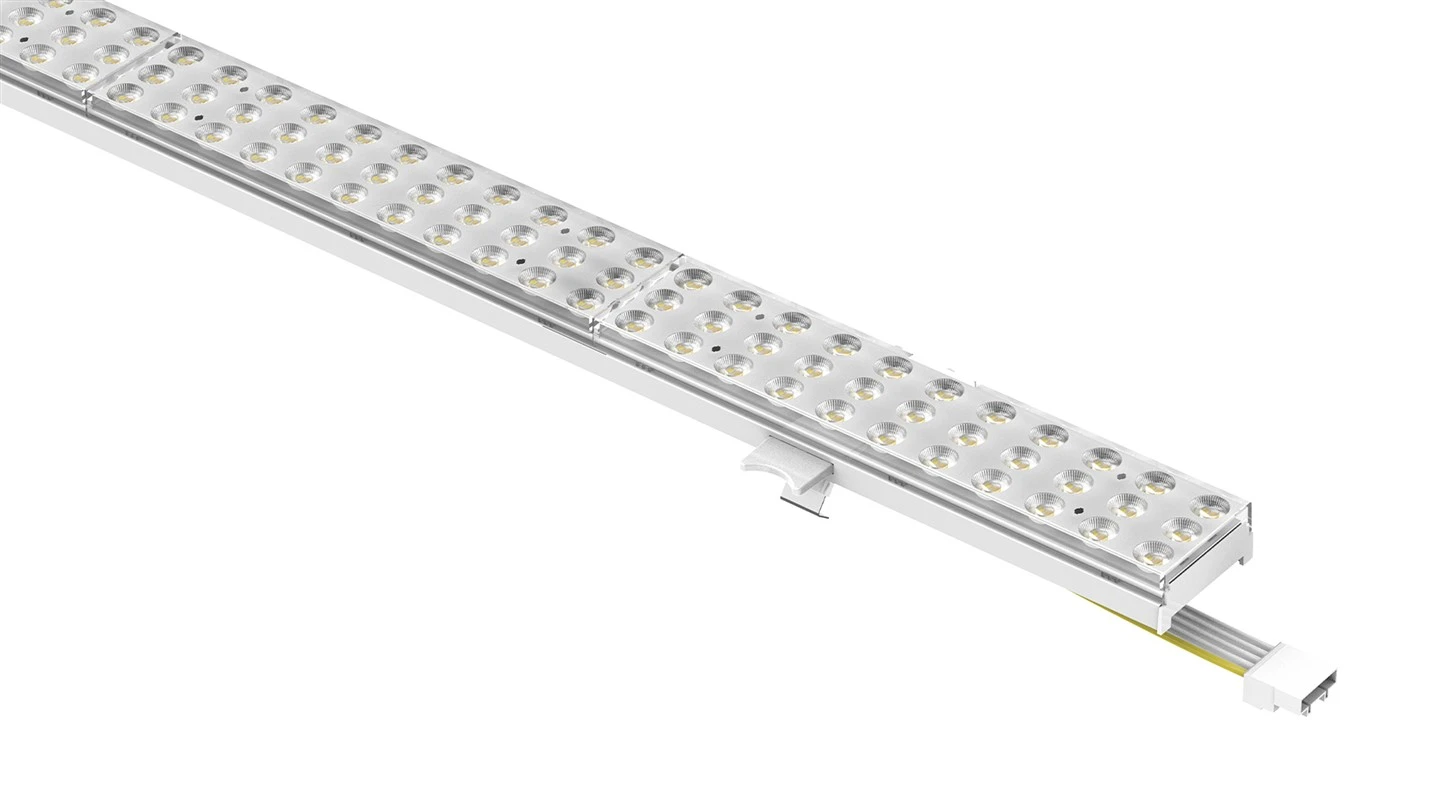

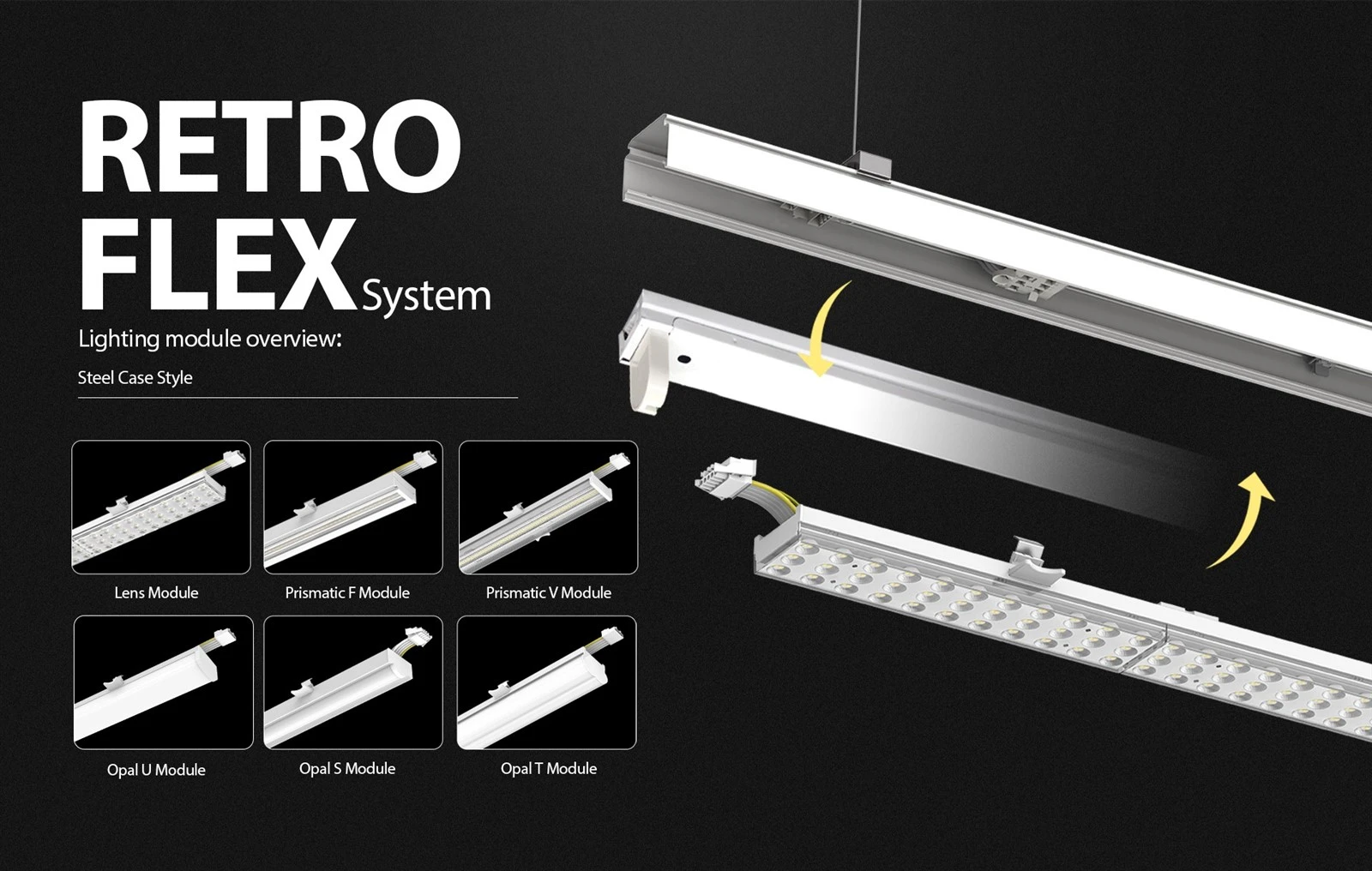

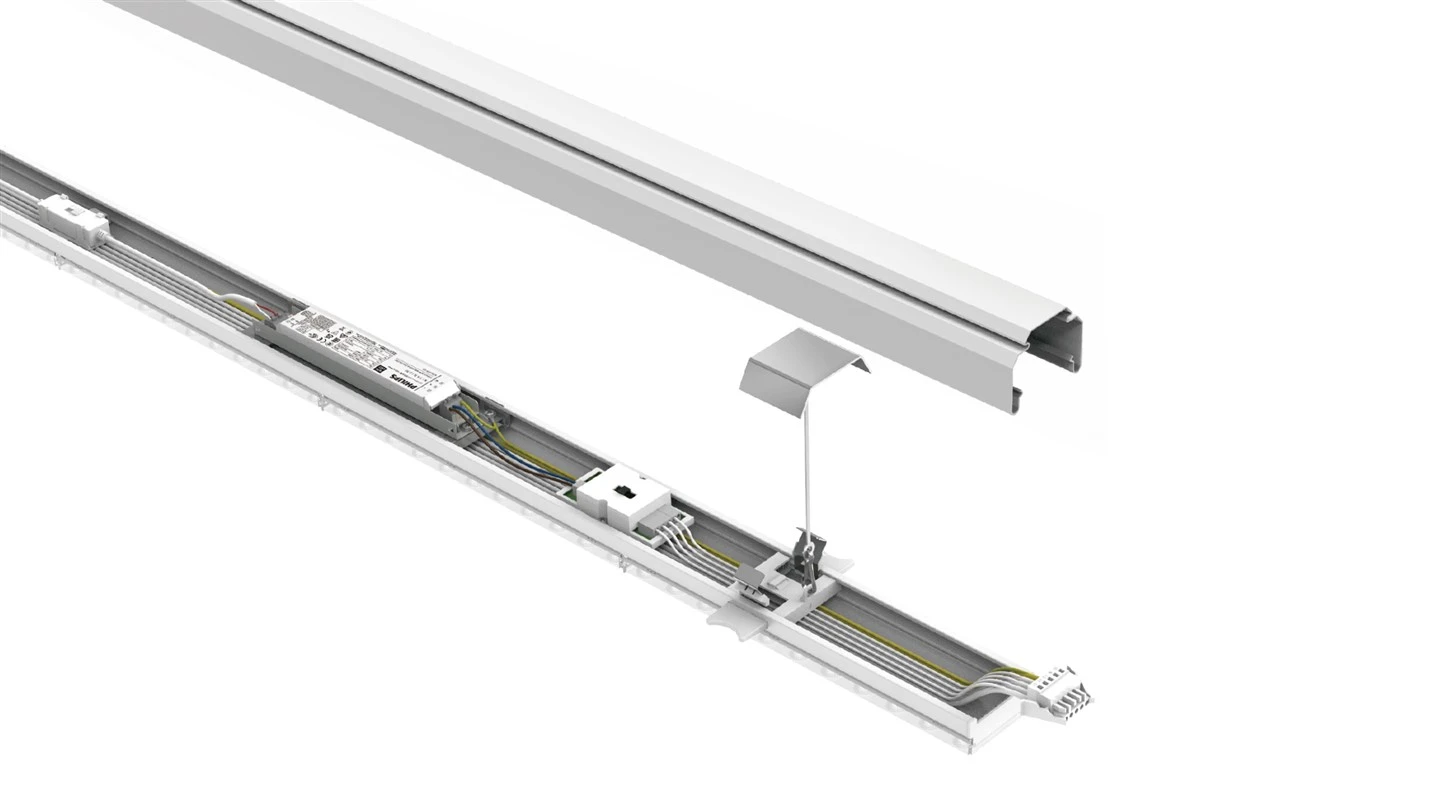

Retro Flex vini ak yon clip entelijan sou modil dirije ki ka monte nan bwat limyè tradisyonèl nan diferan mak tankou: Philips, Trilux, Zumtobel, Siteco, Ridi ak anpil plis. Sistèm fixation fleksib ak pwòp tèt -santre li pèmèt modil sa a monte sou yon pakèt bwat limyè.

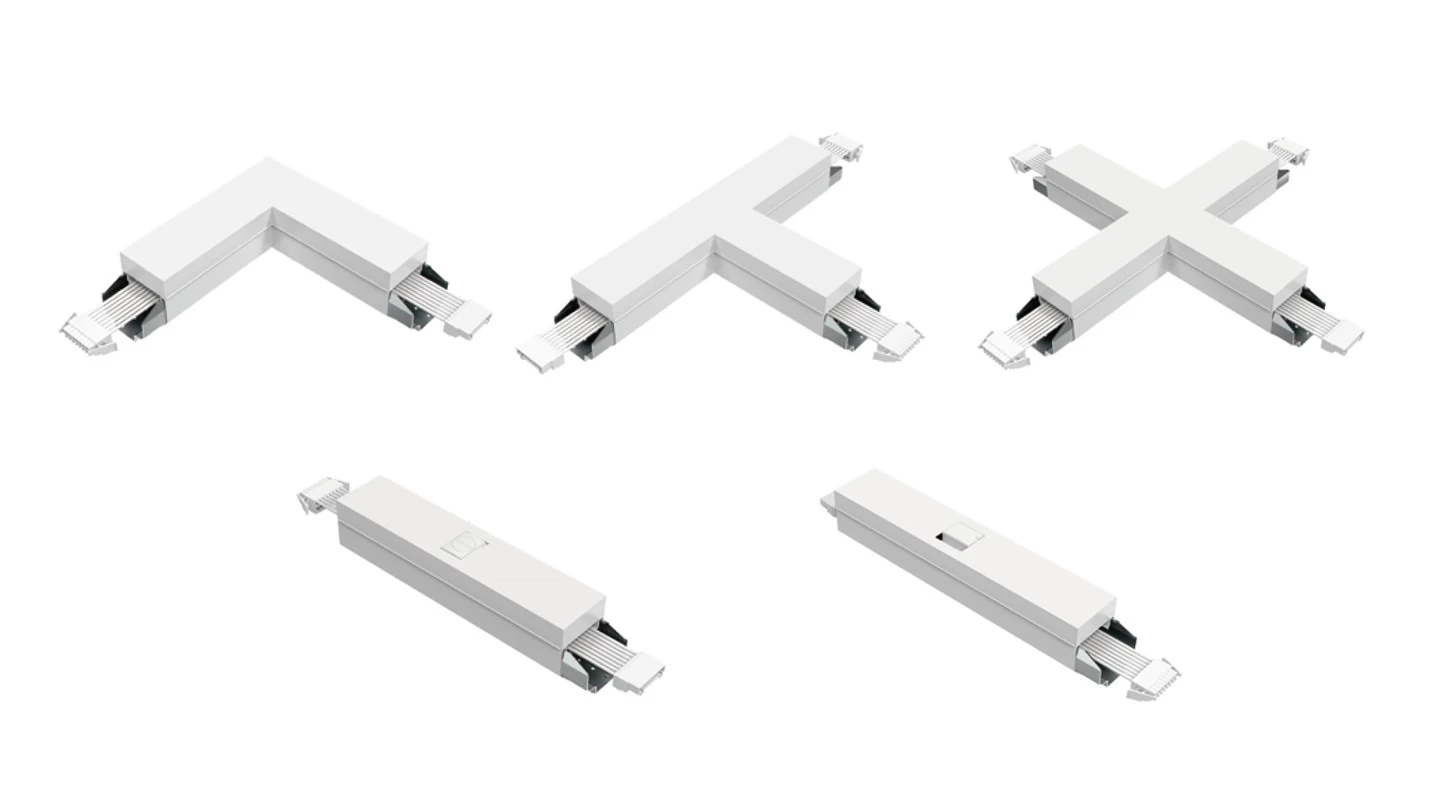

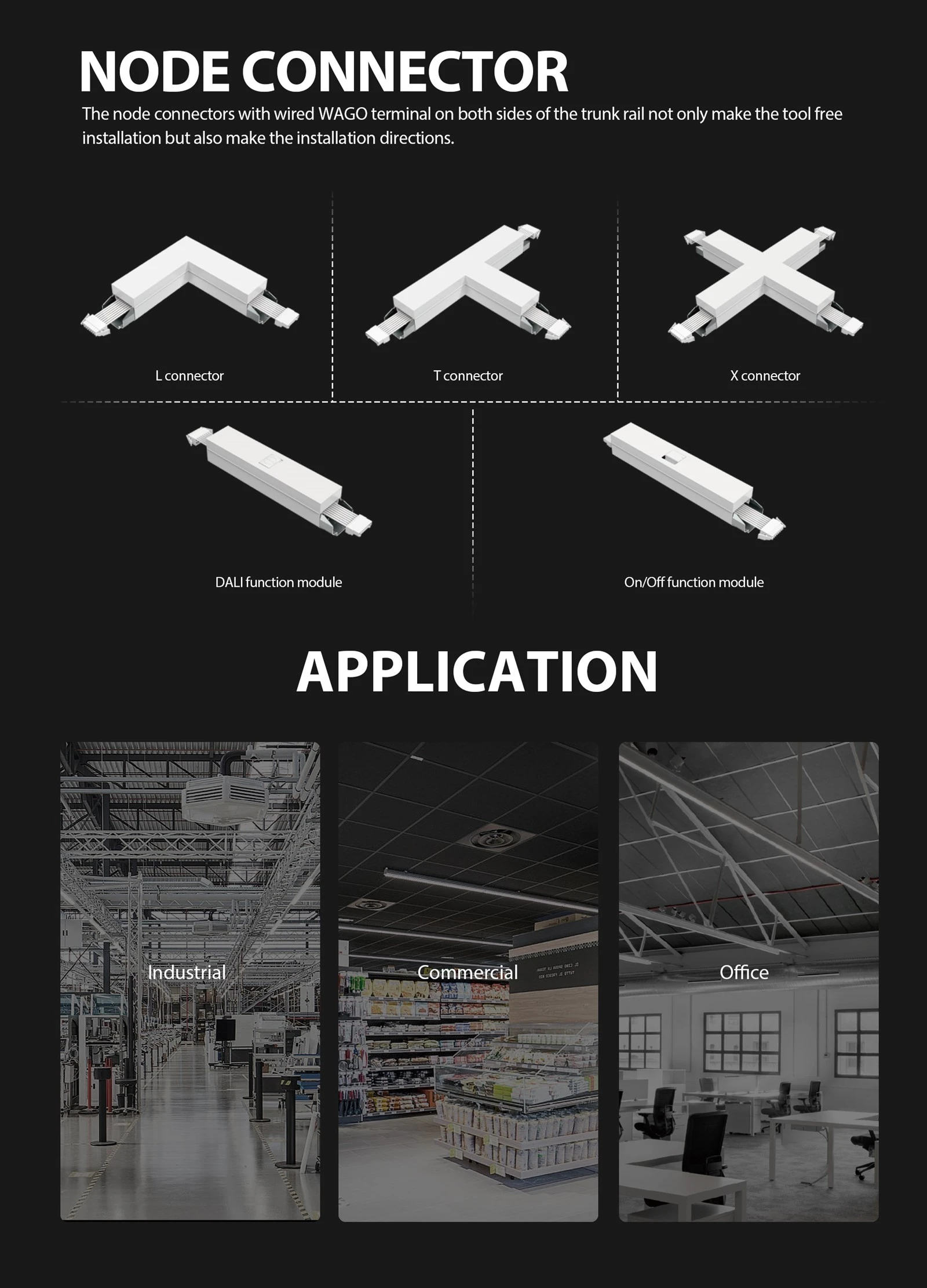

Ki diferans ki genyen ant limyè fliyoresan lineyè ak limyè ki ap dirije? Retro Flex vini ak pwòp seri li yo pre-filè koneksyon, ki fè li konplètman endepandan de kòf li enstale nan. Tèminal koneksyon WAGO a bay yon fason rapid ak fasil pou konekte yon modil ak yon lòt.
|
Kouvri |
Kòd Lòd |
Rated pouvwa |
LM/W |
Lumen |
SDCM/Ra |
Klas IP |

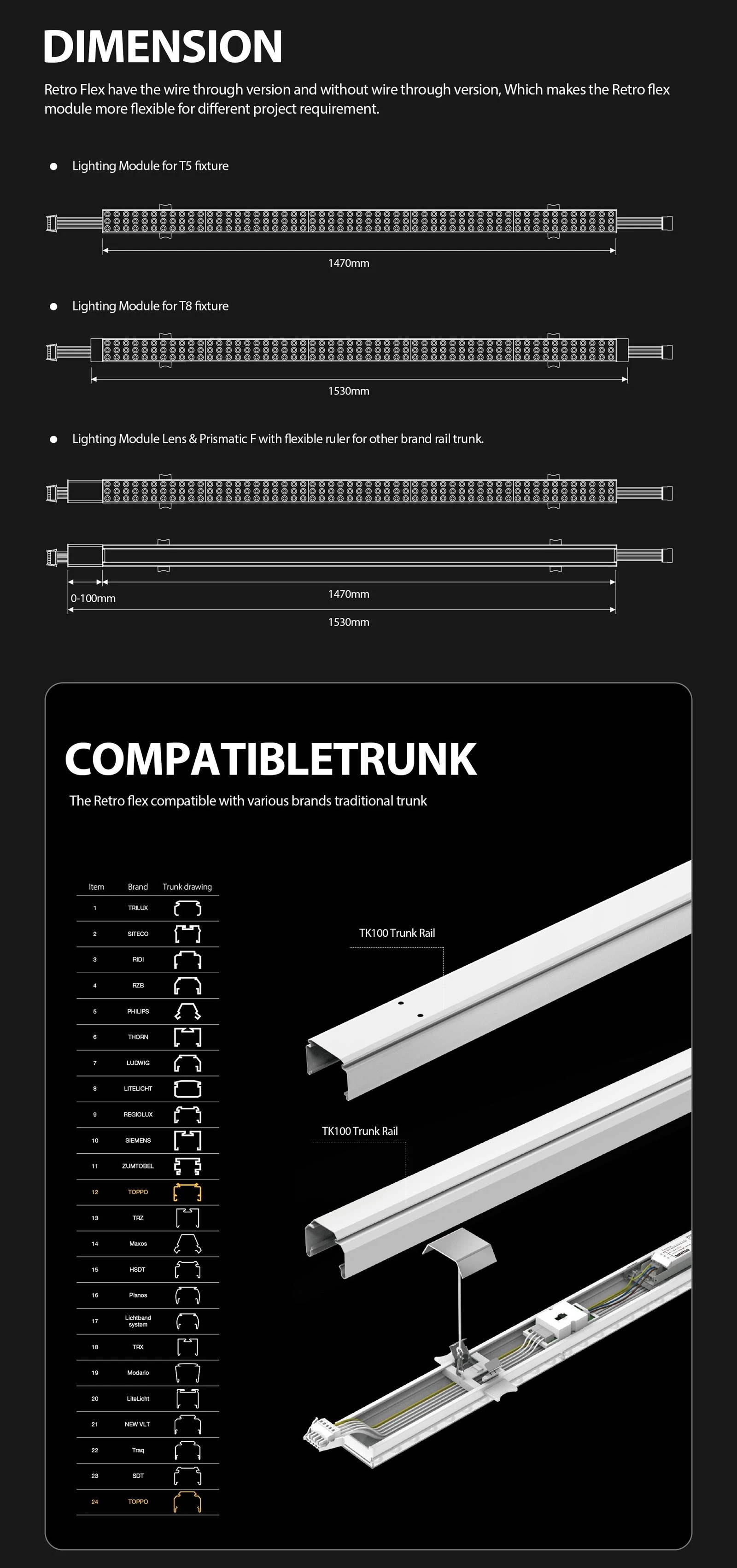

Dimansyon pwodwi |
GW/CTN |
KANTITE/CTN |
|

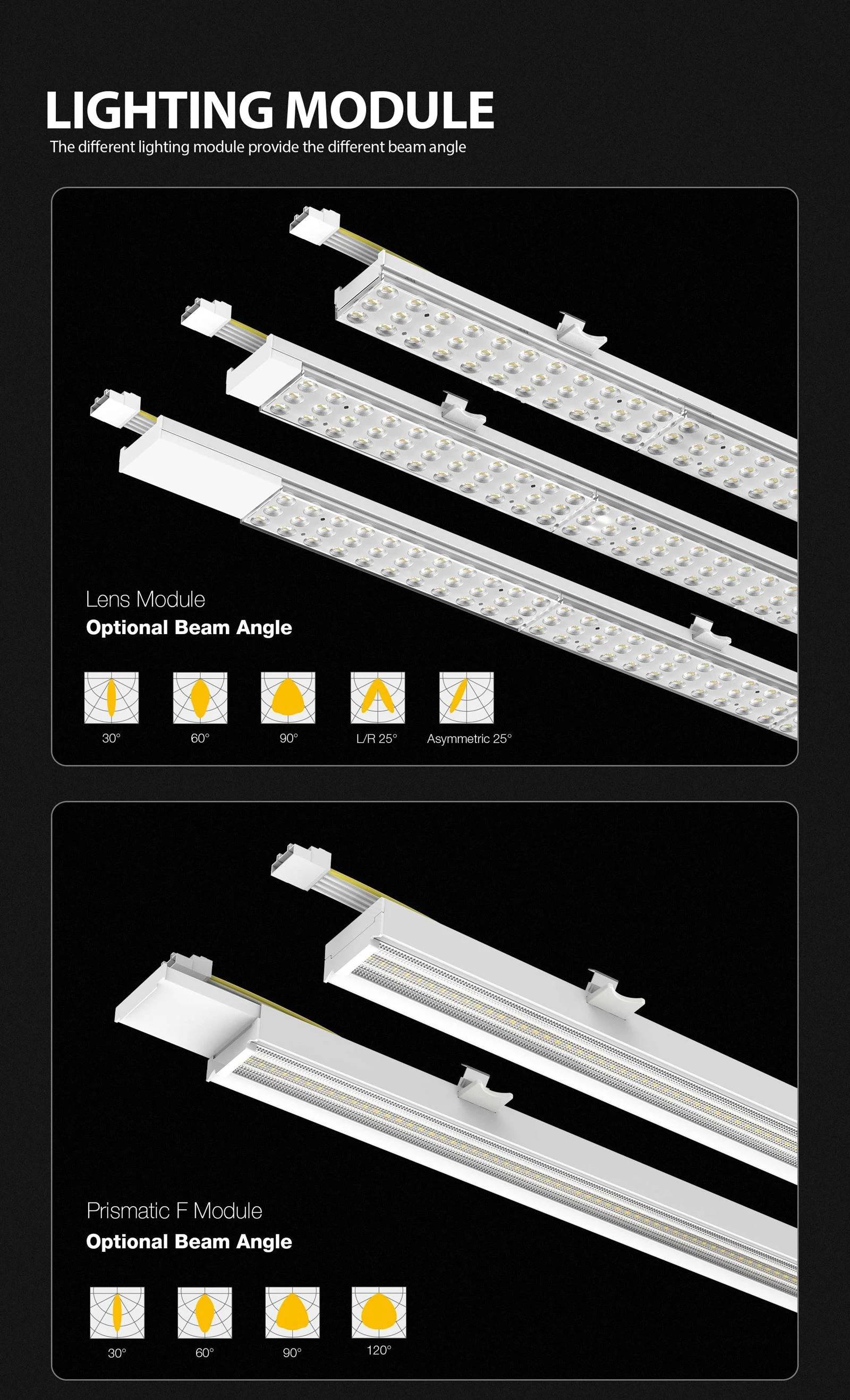

Lantiy optik |
RF100-05W-DT1-75F01 |
20-75W |
Tip.180 |
Typ.4500-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH34 |
14.5kg |
6pcs |
|
Lantiy optik |
RF100-05W-DT1-60F01 |
40-60W |
Tip.180 |
Typ.7200-10800 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH34 |
14.5kg |
6pcs |
|
Lantiy optik |
RF100-05W-DT1-70V01 |
50-70W |
Tip.180 |
Typ.9000-12600 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH34 |
14.5kg |
6pcs |
|
Lantiy optik |
RF100-05W-DT1-75D01 |
20-75W |
Tip.180 |
Typ.4500-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH34 |
14.5kg |
6pcs |
|
Lantiy optik |
RF100-05W-DT1-70D01 |
35-70W |
Tip.180 |
Typ.6300-12600 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH34 |
14.5kg |
6pcs |
|
Lantiy optik |
RF100-05W-DT1-75F01 |
35-75W |
Tip.180 |
Typ.6300-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH34 |
14.5kg |
6pcs |
|
Prismatik optik F |
RF130-05W-DT1-75F01 |
20-75W |
Tip.180 |
Typ.4500-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH39 |
14.5kg |
6pcs |
|
Prismatik optik F |
RF130-05W-DT1-60F01 |
40-60W |
Tip.180 |
Typ.7200-10800 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH39 |
14.5kg |
6pcs |
|
Prismatik optik F |
RF130-05W-DT1-75D01 |
20-75W |
Tip.180 |
Typ.4500-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH39 |
14.5kg |
6pcs |
|
Prismatik optik F |
RF130-05W-DT1-70D01 |
35-70W |
Tip.180 |
Typ.6300-12600 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH39 |
14.5kg |
6pcs |
|
Prismatik optik F |
RF130-05W-DT1-75F01 |
35-75W |
Tip.180 |
Typ.6300-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH39 |
14.5kg |
6pcs |
|

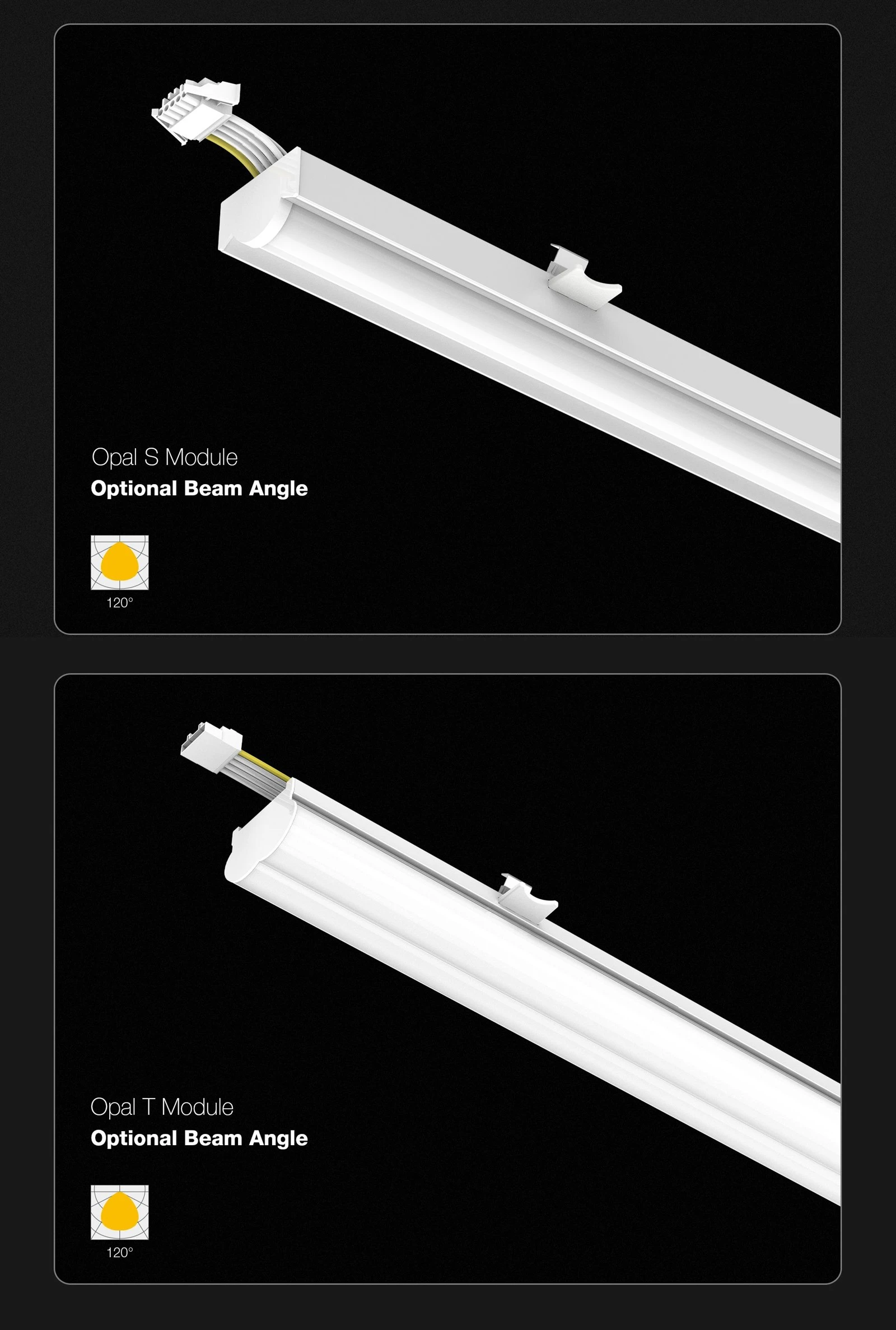

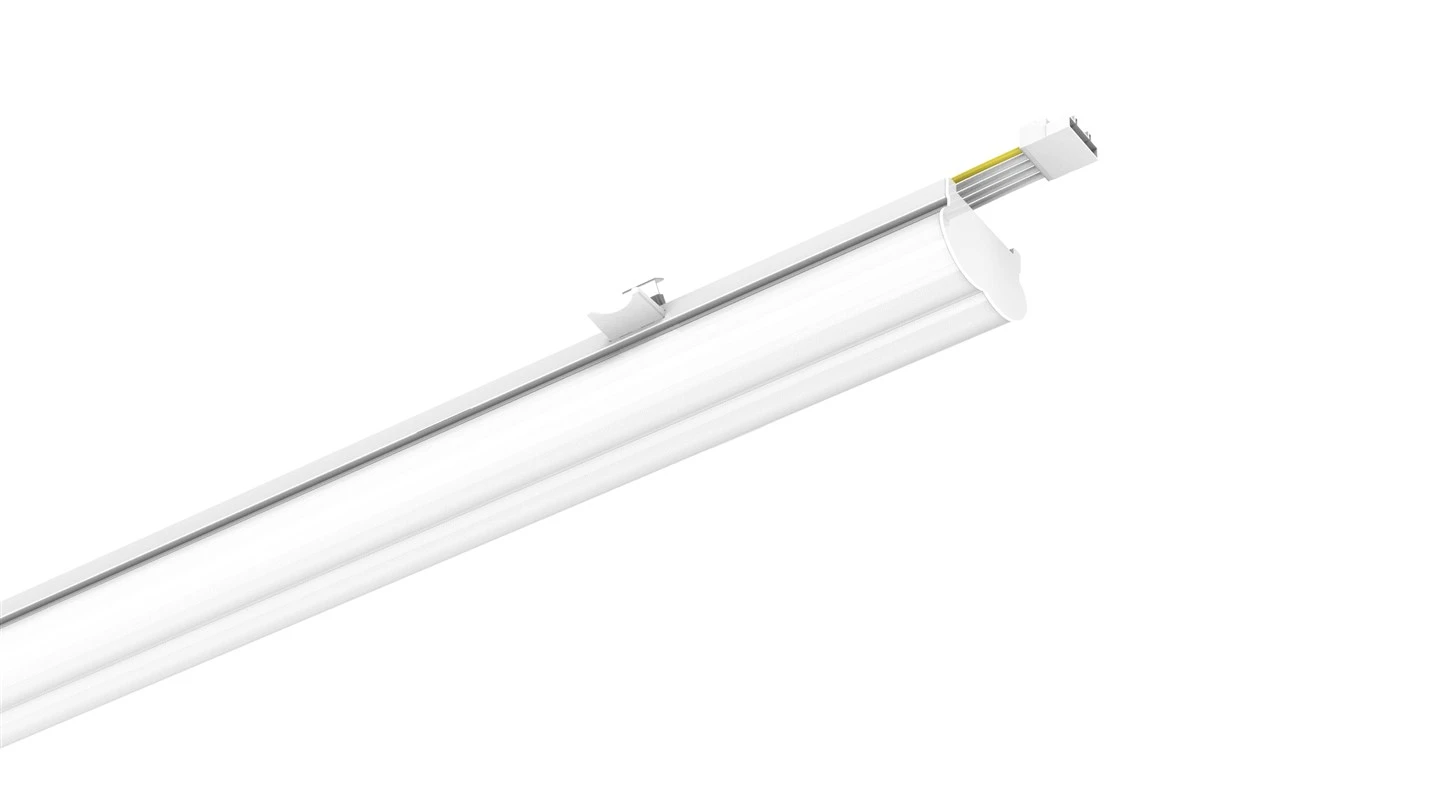

Opal T8 |
RF160-05W-DT1-75F01 |
20-75W |
Tip.180 |
Typ.4500-13500 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470/1530XW65XH36 |
14.5kg |
6pcs |
|
Opal T8 |
RF160-05W-DT1-60F01 |
40-60W |
Tip.180 |
Typ.7200-10800 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470/1530XW65XH36 |
14.5kg |
6pcs |
|
Opal T8 |
RF160-05W-DT1-70V01 |
50-70W |
Tip.180 |
Typ.9000-12600 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470/1530XW65XH36 |
14.5kg |
6pcs |
|
Opal T8 |
RF160-05W-DT1-75D01 |
20-75W |
Tip.180 |
Typ.4500-13500 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470/1530XW65XH36 |
14.5kg |
6pcs |
|
Opal T8 |
RF160-05W-DT1-70D01 |
35-70W |
Tip.180 |
Typ.6300-12600 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470/1530XW65XH36 |
14.5kg |
6pcs |
|
Opal T8 |
RF160-05W-DT1-75F01 |
35-75W |
Tip.180 |
Typ.6300-13500 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470/1530XW65XH36 |
14.5kg |
6pcs |
